1 4

CURVE CYCLING

Belgie ULTRA Frameset

Belgie ULTRA Frameset

€3.200,45 EUR
€0,00 EUR €3.200,45 EUR
Sale Sold out
Taxes included.
Size
Fork
Need Help With Sizing?

Enquire

For info on availability, please contact malaga@curvecycling.com,
call us on +34952358501.

Geometry



Tech Info

Shipping

Free International Shipping for all Framesets, Complete Bikes, Forks, Wheelsets, Bars and Rocket Pooches is included in the sales price (*excludes Belgie DISC Ultegra)


All other products are subject to shipping charges calculated at checkout. See our Shipping Policy for further details.

FAQs



What's the process when getting a custom build?
The process always starts with a conversation, so get in touch and tell us about your Dream Bike, and we can advise on the best way to make that dream a reality. The next step is to put down a deposit (at least 50%) - this will get the product secured or ordered under your name and the build process underway. We'll be in touch as the build progresses with any updates.

Want to Carry More?
With a wide range of frame and fork-mounted rack systems on the market, and with more appearing every week, it is not possible for us to know exactly which racks will be compatible. Before mounting a rack to your frame or fork, we strongly recommend you get in touch with us for our advice. We will do our best to verify compatibility.
This will minimise the risk of injury, product damage and voiding your warranty. Your local Curve dealer, or the team at Curve HQ, can also help you select a rack system and mount it to your bike for you.

In general, M5 mounts on chainstays and seatstays will accept racks of various types, and the maximum approved weight to carry on a rack is 20kg (or less, depending on the rack rating).

Note: This rating is for smooth roads & gravel. For anything rougher, the weight limit decreases. Use careful discretion when gauging how much weight to carry on rough gravel or off-road adventures.


What payment options are there?
We accept payment in the form of credit card, Pay Pal and EFT. If you'd prefer to pay for your Curve bike or product in multiple payments, please contact us for an invoice with payment options attached.


How long will my order take to ship?
Some products can be shipped immediately and normally land within 10-15 business days. Other products will have a lead time depending on supply levels and build time. As a guide, complete bikes normally take 3-4 weeks, custom wheel builds take 2–3 weeks, and custom frames take 3-6 months, plus shipping time.

How much assembly is needed for complete bikes?
All our complete bikes are assembled and tuned before being packed safely for shipping (unless agreed otherwise). This means that you will not have to cut the chain, bleed brakes or set up and tune gears. However, in order for us to fit the bike in the box, some parts will have to come off. This means that some assembly is needed once you receive your new bike.

This is the normal level of assembly needed:
  • Fit the front wheel
  • Fit the handlebars on the stem (torque wrench needed)
  • Fit the seatpost and adjust the saddle height and angle to your preference
  • Fit the rear derailleur and chain *
  • Fill sealant in tubeless tyres

* We realise that fitting the derailleur and chain may be something you're not comfortable doing yourself. We leave these parts off and pack them separately in the box to protect the bike and derailleur. The rear derailleur is one of the more expensive components on the bike, and we do not want you to receive your bike with a bent hanger, a broken or damaged derailleur, and/or a scratched chainstay due to chain rattle.

NOTE: We always recommend that you take your new bike to a professional mechanic to ensure everything is as it should be before you ride it. We can not take any responsibility for incorrectly self-assembled bikes.



Lighter and Sleeker

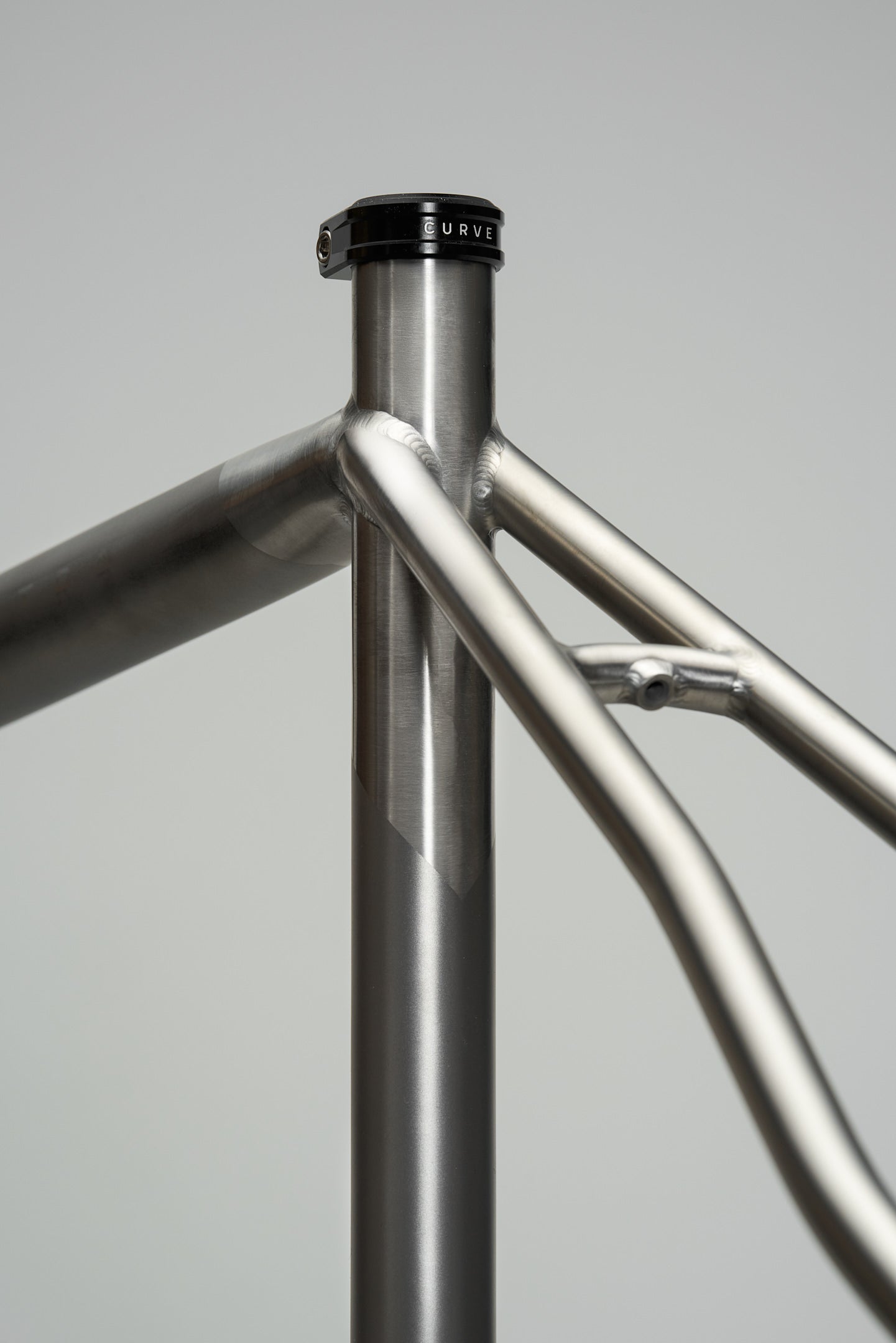

The Belgie ULTRA has thinner 16 mm seat stay tubing and an updated tapered head tube, resulting in a sleeker frame design and considerable weight savings.

At 1630 grams, the Belgie ULTRA 56 frame is 180 grams lighter than the previous model

Stability and Improved Geometry

Longer chainstays, front centre, and overall wheelbase across all sizes. A taller stack and extended reach help make the ULTRA more comfortable on day-long rides. This also helps minimise pesky toe overlap when using a wider tyre.

The ULTRA features our Race 370 fork, resulting in tyre clearance of up to 33 mm.

Bento Box + Extra Storage Space

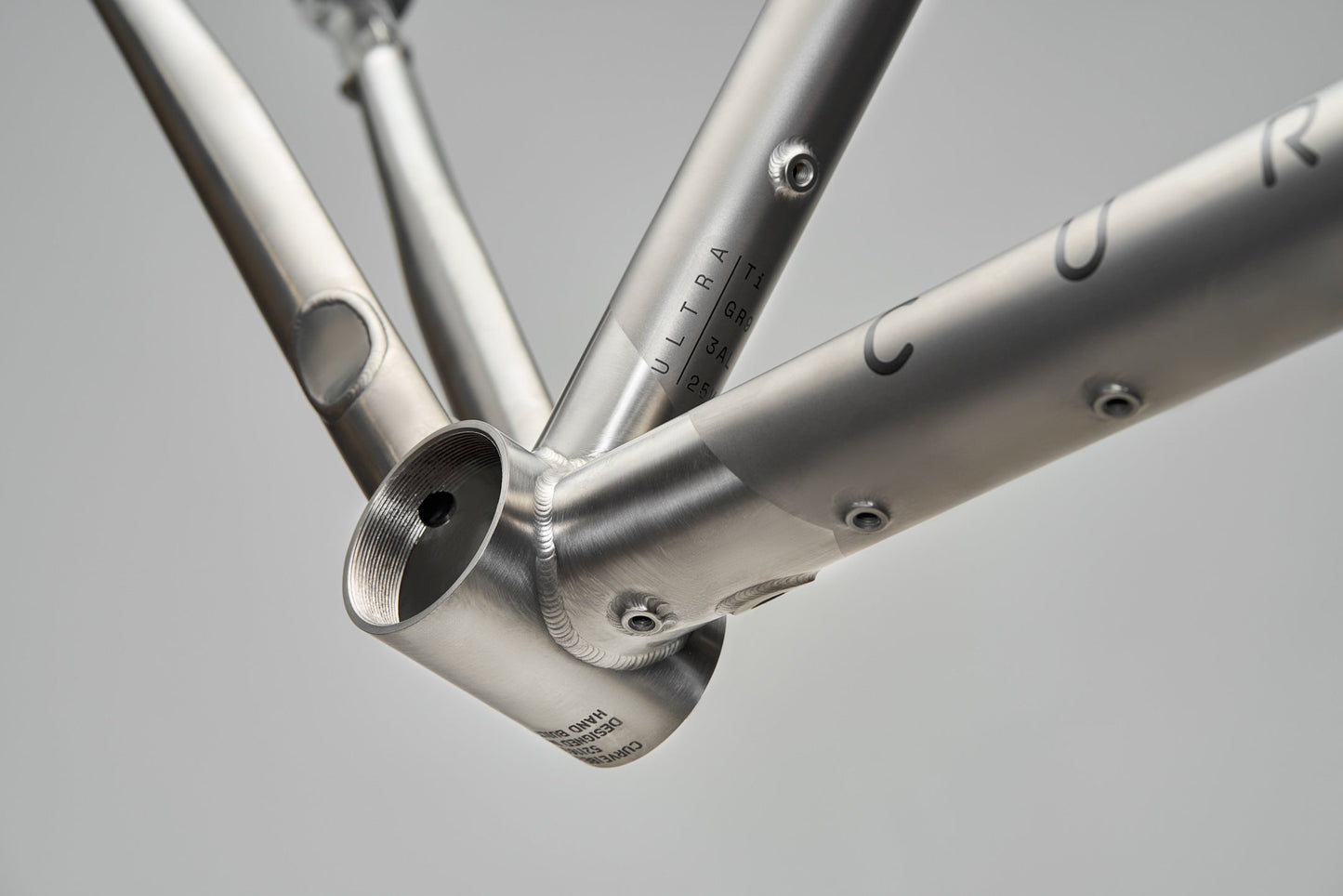

The Belgie ULTRA features Bento Box mounting points on the top tube allowing riders to secure belongings in most bolt-on bike bags. We have also increased the size of the front triangle, allowing more storage capacity for top tube frame bags and water bottles.

There is ample room for bikepacking bags on all frameset sizes. To make sure current, prospective or custom bagging fits your frame size please see our Bagmaker Drawing page.

Mechanical versus Electric

Thanks to some improvements in engineering, the Belgie frame is now compatible with both electronic and mechanical gear systems. So you can now have your pick of eTap, Di2, or standard mechanical options.

Invest In Happiness

Curve titanium frames come with a Lifetime Warranty so that you can be sure the bike you love most will be the bike you love longest. We design every Curve product at our Abbotsford headquarters, then test them out in the real world, under the most demanding conditions.

Want to Carry More?

With a wide range of frame and fork mounted rack systems on the market, and with more appearing every week, it is important to understand which rack systems are compatible with your Curve frame and fork, and how to mount them correctly in order to ensure safe riding, avoid damage and voiding your warranty. Before mounting a rack, we strongly recommend you get in touch with us to confirm compatibility and the correct mounting procedure. This will minimise the risk of injury, product damage and voiding your warranty. Your local Curve dealer, or the team at Curve HQ, can also help you select a rack system and mount it to your bike for you.

Frameset Includes

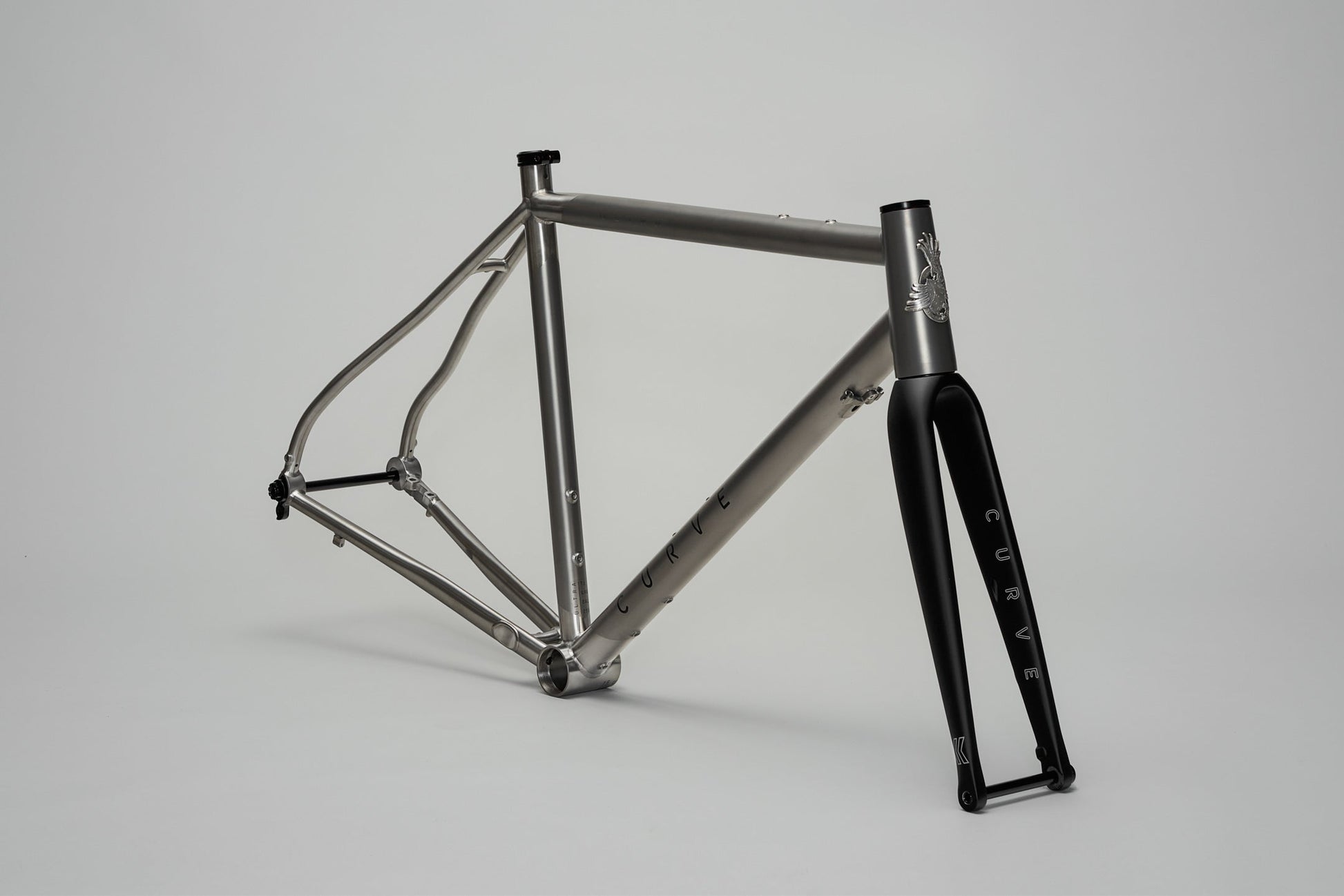

Frame Titanium Curve Belgie Ultra
Fork Curve Race 370
Steerer expander plug
Race Ride Seek stem cap
Headset Curve Integrated 42/52cmm semi-internal
Seat Clamp Curve Alloy 31.8mm
Bento Box Mounts on top tube are placed 64mm apart. (76mm from of the outer diameter of the headtube)
Other Curve Cocky Headbadge

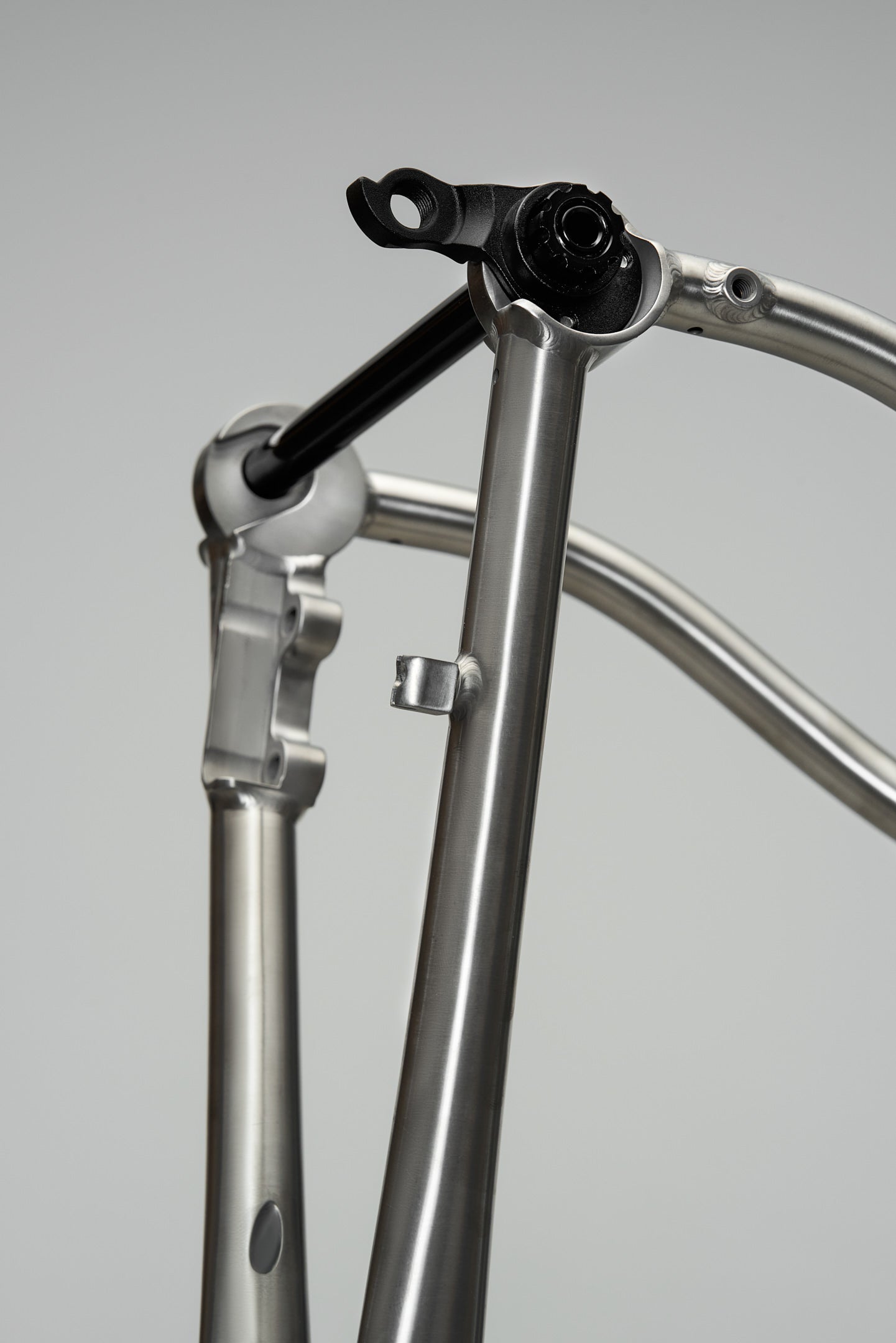

12mm Front & Rear Axles
Carbon front derailleur clamp
Removable DT, BB and CS cable guides for mechanical group sets
Hanger
Please Note: Important Note: Please be aware that due to the steerer length of the Ride 370 fork (300mm), when paired with Ultra frames in sizes 61 and 64 only 10mm and 0mm of spacers will fit under the stem, respectively, due to the longer headtubes (61 cm - 240 mm, 64 cm - 250 mm).

If more stack is needed, an alternate fork with a longer steerer tube may be required. Please Contact Us to talk through possible options if this may affect you.
View full details

If you are building your Curve frameset with a self-supplied groupset, please see the specification guide via the link below to ensure the necessary parts are sufficiently compatible with our framesets.

The specification details may change over time. Please check HERE for the latest version.
