CURVE CYCLING

Belgie DISC Frameset

Belgie DISC Frameset

€3.189,00 EUR
€0,00 EUR €3.189,00 EUR
Sale Sold out
Taxes included for EU customers. Shipping calculated at checkout.
Size
Fork

Enquire

For info on availability, please contact malaga@curvecycling.com,
call us on +34952358501.

Geometry



Tech Info

Shipping

Shipping calculated at checkout for EU orders. For international customers, please visit curvecycling.com.

FAQs



What's the process when getting a custom build?
The process always starts with a conversation, so get in touch and tell us about your Dream Bike, and we can advise on the best way to make that dream a reality. The next step is to put down a deposit (at least 50%) - this will get the product secured or ordered under your name and the build process underway. We'll be in touch as the build progresses with any updates.

Want to Carry More?
With a wide range of frame and fork-mounted rack systems on the market, and with more appearing every week, it is not possible for us to know exactly which racks will be compatible. Before mounting a rack to your frame or fork, we strongly recommend you get in touch with us for our advice. We will do our best to verify compatibility.
This will minimise the risk of injury, product damage and voiding your warranty. Your local Curve dealer, or the team at Curve HQ, can also help you select a rack system and mount it to your bike for you.

In general, M5 mounts on chainstays and seatstays will accept racks of various types, and the maximum approved weight to carry on a rack is 20kg (or less, depending on the rack rating).

Note: This rating is for smooth roads & gravel. For anything rougher, the weight limit decreases. Use careful discretion when gauging how much weight to carry on rough gravel or off-road adventures.


What payment options are there?
We accept payment in the form of credit card, Pay Pal and EFT. If you'd prefer to pay for your Curve bike or product in multiple payments, please contact us for an invoice with payment options attached.


How long will my order take to ship?
Some products can be shipped immediately and normally land within 10-15 business days. Other products will have a lead time depending on supply levels and build time. As a guide, complete bikes normally take 3-4 weeks, custom wheel builds take 2–3 weeks, and custom frames take 3-6 months, plus shipping time.

How much assembly is needed for complete bikes?
All our complete bikes are assembled and tuned before being packed safely for shipping (unless agreed otherwise). This means that you will not have to cut the chain, bleed brakes or set up and tune gears. However, in order for us to fit the bike in the box, some parts will have to come off. This means that some assembly is needed once you receive your new bike.

This is the normal level of assembly needed:
  • Fit the front wheel
  • Fit the handlebars on the stem (torque wrench needed)
  • Fit the seatpost and adjust the saddle height and angle to your preference
  • Fit the rear derailleur and chain *
  • Fill sealant in tubeless tyres

* We realise that fitting the derailleur and chain may be something you're not comfortable doing yourself. We leave these parts off and pack them separately in the box to protect the bike and derailleur. The rear derailleur is one of the more expensive components on the bike, and we do not want you to receive your bike with a bent hanger, a broken or damaged derailleur, and/or a scratched chainstay due to chain rattle.

NOTE: We always recommend that you take your new bike to a professional mechanic to ensure everything is as it should be before you ride it. We can not take any responsibility for incorrectly self-assembled bikes.

What's Different with the Belgie V3 compared to its Predecessor?

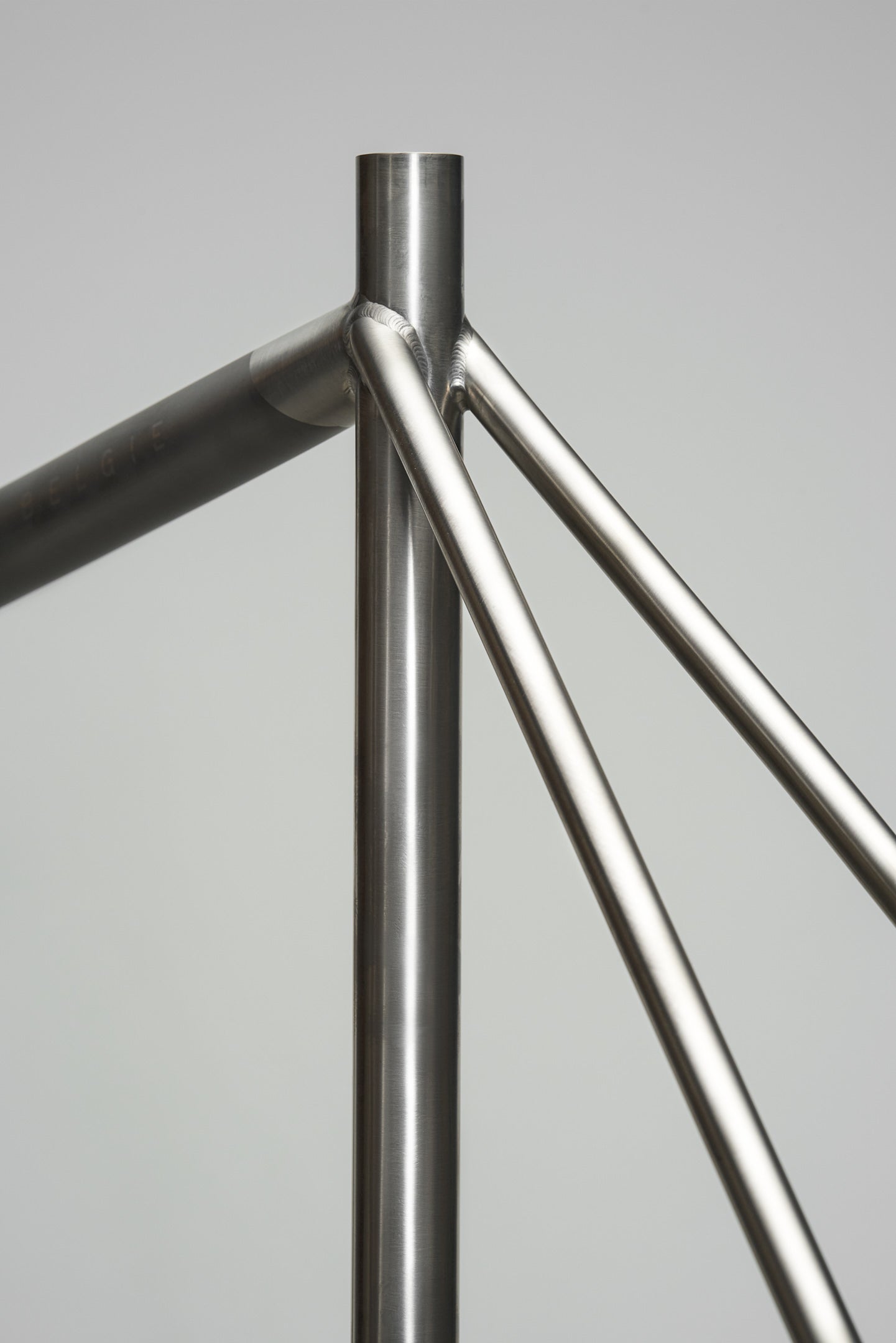

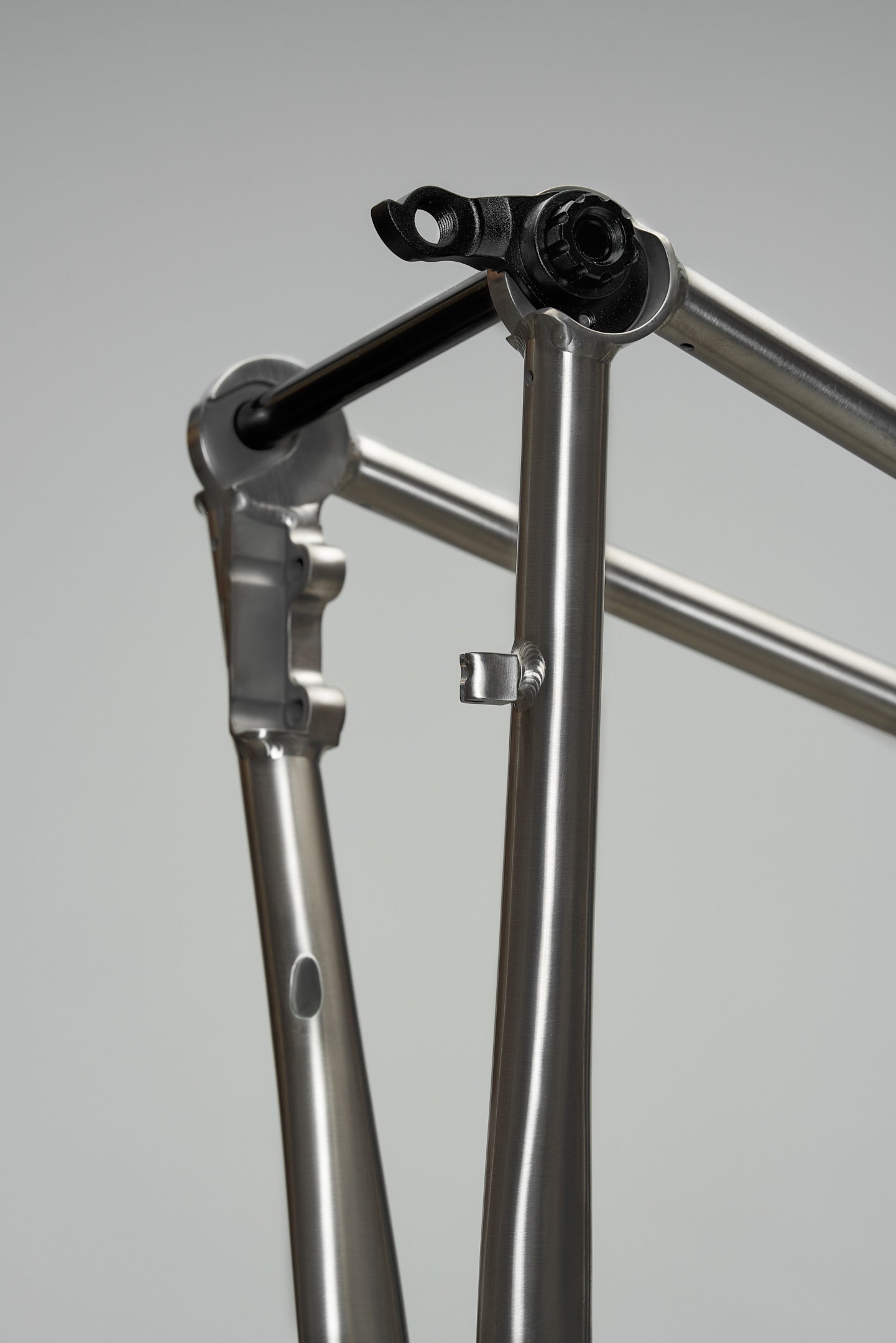

We've straightened out the seat stays and removed the old ‘brake bridge’ for a new sleeker and lighter behind. This means better tyre clearance, up to 32 mm. Upfront, the tapered head tube is taken straight from our Belgie AIR and utilises an integrated headset for some gram shedding and a sleeker finish.

A Size for Everyone

Are you an ‘extra medium’ or in-between size? Check out our sizing and geometry chart below and see that we've introduced more sizes to ensure your Belgie is the perfect fit.

Mechanical versus Electric

Thanks to some improvements in engineering, the Belgie frame is now compatible with both electronic and mechanical gear systems. So you can now have your pick of eTap, Di2, or standard mechanical options.

The Result

The Belgie is lighter and yet more versatile with increased tyre clearance. This race bike is just as comfortable racing a crit as it is exploring the back roads of the alpine region.

Travel in Comfort

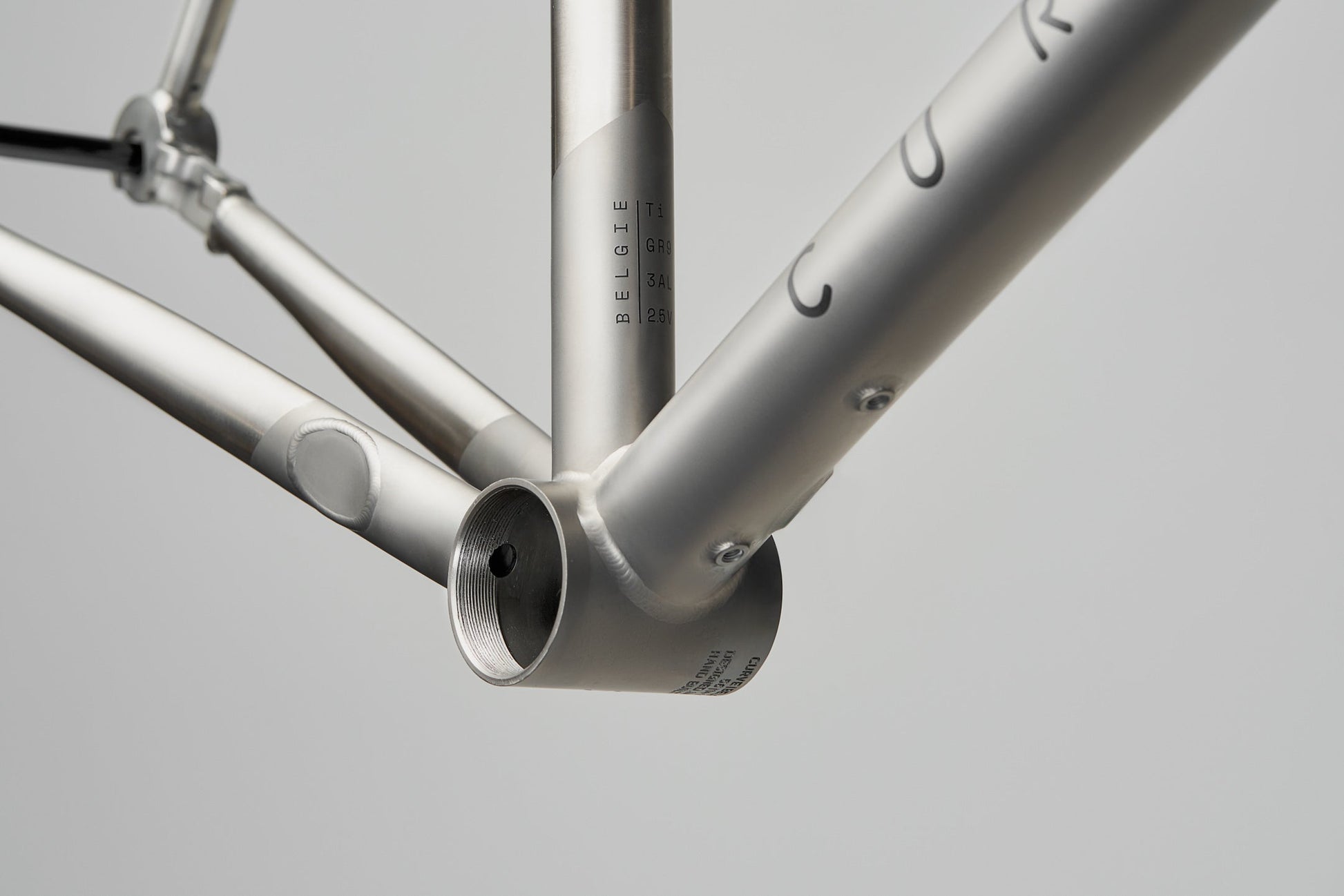

At the core of each frame is a 3Al - 2.5V Grade 9 Aerospace grade titanium tube-set. This grade is optimal for bicycle frames and chosen for its stiffness, compliance, and durability balance. Titanium absorbs road noise without compromising on performance. There’s no buzzy feedback; it’s smooth as silk and very compliant so that you can spend more time on the bike. The Belgie V3 is just as comfortable racing a crit as exploring long climbs in the alpine region.

Invest in Happiness

Curve titanium frames come with a Lifetime Warranty so that you can be sure the bike you love most will be the bike you love longest. We design every Curve product at our Abbotsford headquarters, then test them out in the real world, under the most demanding conditions.

Want to Carry More?

With a wide range of frame and fork mounted rack systems on the market, and with more appearing every week, it is important to understand which rack systems are compatible with your Curve frame and fork, and how to mount them correctly in order to ensure safe riding, avoid damage and voiding your warranty. Before mounting a rack, we strongly recommend you get in touch with us to confirm compatibility and the correct mounting procedure. This will minimise the risk of injury, product damage and voiding your warranty. Your local Curve dealer, or the team at Curve HQ, can also help you select a rack system and mount it to your bike for you.

We also have Bagmaker Drawings available for all frame sizes.

Frameset Includes

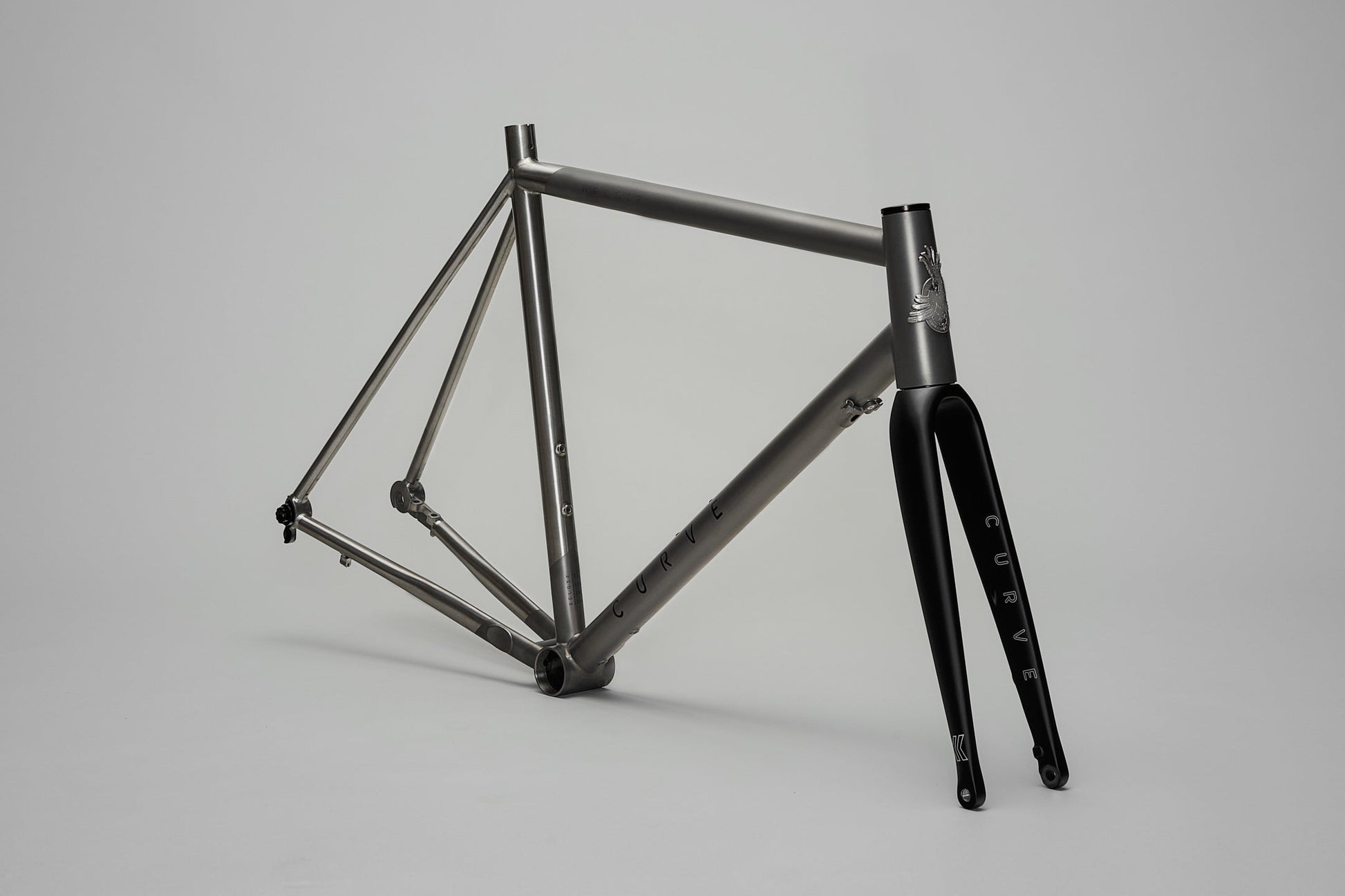

Frame Titanium Curve Belgie V3
Fork Curve Race 370
Steerer expander plug
Race Ride Seek stem cap
Headset Curve Integrated 42/52 mm semi-internal
Seat Clamp Curve Alloy 31.8mm
Other

Curve Cocky Headbadge
12mm Front & Rear Axles
Carbon front derailleur clamp
Removable DT, BB and CS cable guides
for mechanical group sets
Hanger



View full details

If you are building your Curve frameset with a self-supplied groupset, please see the specification guide via the link below to ensure the necessary parts are sufficiently compatible with our framesets.

The specification details may change over time. Please check HERE for the latest version.
